TRILUMIS
Pendant luminaires

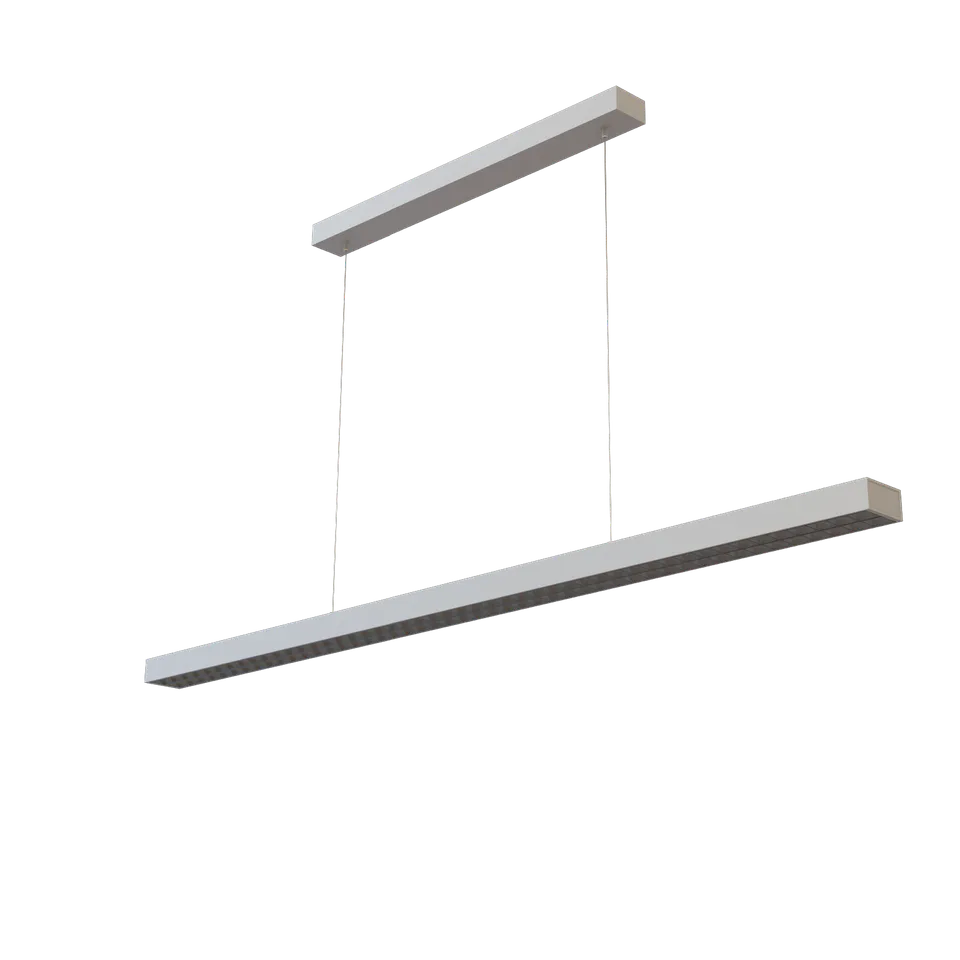

CAESAR PL2

CAESAR PL2

Product essentials

Item code
CPL2
Applications
Custom
Product essentials

Key facts

Leuchtenlichtstrom
max.7790 lm
Leistungsaufnahme
max.70 W
Leistungeinstellbarkeit
Ja
Effizienz in lm/W
max.122 lm/W
Farbtemperatur
3000 K, 4000 K
Product profile

Product description

The CAESAR PL2 LED pendant luminaire is a linear lighting solution for modern office and commercial spaces. It is suitable for workstations, meeting rooms, reception areas and representative interiors where high lighting quality and clear design are required. The luminaire is part of the CAESAR luminaire family and complements other versions for a consistent lighting concept.

The combination of direct and indirect light distribution ensures a balanced illumination of the work surface and space. The Darklight reflector system in the direct part of light supports precise light control and a glare-reduced light effect.

The powder-coated aluminium body is available in white, silver or black and fits in with different room concepts. Different light colours, dimming options via DALI-2 or 1-10V as well as variants with self-contained emergency battery are available depending on the project requirements. Special versions are possible on request.

Product characteristics

  • Linear LED pendant luminaire for office and commercial spaces
  • Part of the CAESAR luminaire family
  • Direct and indirect light distribution
  • Darklight reflector system for high glare control in the direct part
  • Balanced illumination of work surface and space
  • Suitable for offices, meeting rooms and reception areas
  • Different light colours available
  • Luminaire body of powder-coated aluminium
  • Available in white, silver or black
  • Dimmable via DALI-2 or 1-10V
  • Easy assembly
  • Protection class I
  • Ingress protection rating IP20
  • Impact resistance IK02
  • Variants with self-contained emergency battery on request
  • Special versions on request

Technical data

Abmessung
1391 x 64 x 35 mm
Leistungsaufnahme
max.70 W
Energieverbrauch
max.70 kWh/1000h
Flicker
± 3%
Schutzart
IP20
Schlagfestigkeitsklasse
IK02
Leuchtenlichtstrom
max.7790 lm
Effizienz in lm/W
max.122 lm/W
Abstrahlwinkel
D: 50° / ID: 115°
Direkt-/Indirekt-Verhältnis
D: 50% / ID: 50%
Farbtemperatur
3000 K4000 K
Farbwiedergabe
>80
Farbkonsistenz
3 SDCM
Produktmaterial
AluminiumPC
Produktfarbe
WeißSchwarzSilber
Garantie
5 Jahre
Sonderaussführungen
Auf Anfrage
Treiber
On/OffDALI1-10V
Extras
Ohne Extras
Leistungeinstellbarkeit
Ja
YOUR CONFIGURATION

Variants

Select one value per attribute. Combine several selections to narrow down the variant list.

Select attributes
18 variantsFilter available variants by configuration

Scroll horizontally to compare all attributes.

SKULeistungsaufnahme FarbtemperaturProduktfarbe TreiberExtras
PDL-CPL2-70-30-W-O-OXmax.70 W3000 KWeißOn/OffOhne Extras
PDL-CPL2-70-30-W-D-OXmax.70 W3000 KWeißDALIOhne Extras
PDL-CPL2-70-30-W-V-OXmax.70 W3000 KWeiß1-10VOhne Extras
PDL-CPL2-70-30-B-O-OXmax.70 W3000 KSchwarzOn/OffOhne Extras
PDL-CPL2-70-30-B-D-OXmax.70 W3000 KSchwarzDALIOhne Extras
PDL-CPL2-70-30-B-V-OXmax.70 W3000 KSchwarz1-10VOhne Extras
PDL-CPL2-70-30-S-O-OXmax.70 W3000 KSilberOn/OffOhne Extras
PDL-CPL2-70-30-S-D-OXmax.70 W3000 KSilberDALIOhne Extras
PDL-CPL2-70-30-S-V-OXmax.70 W3000 KSilber1-10VOhne Extras
PDL-CPL2-70-40-W-O-OXmax.70 W4000 KWeißOn/OffOhne Extras
PDL-CPL2-70-40-W-D-OXmax.70 W4000 KWeißDALIOhne Extras
PDL-CPL2-70-40-W-V-OXmax.70 W4000 KWeiß1-10VOhne Extras
