TRILUMIS
Damp-proof luminaires

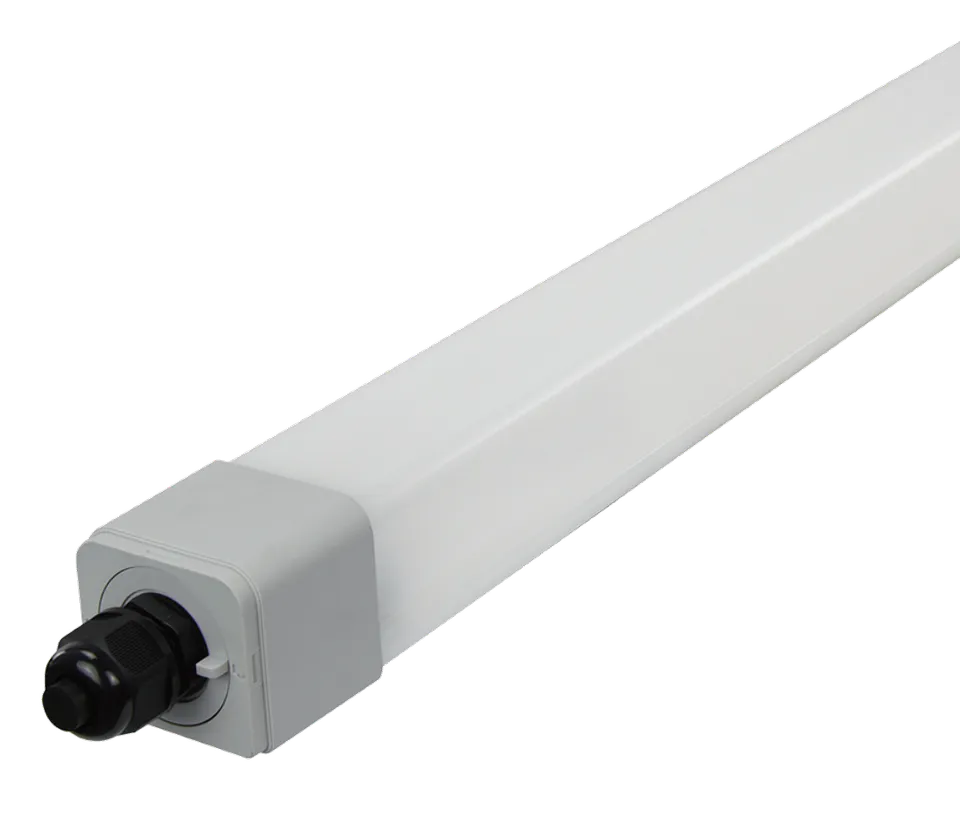

FATTORIA 1323

The FATTORIA L LED moisture-resistant luminaire is a robust, ammonia-resistant solution for agricultural and technical areas. It is available in different lengths and is suitable for ceiling or wall mounting. The closed PMMA design, freely positionable mounting clips and optional DALI versions support use in demanding environments. The luminaire is part of the FATTORIA luminaire family.

Product essentials

Item code
F13Q
Applications
Custom
Product essentials

Key facts

Leuchtenlichtstrom
max.4200 lm
Leistungsaufnahme
max.35 W
Leistungeinstellbarkeit
Nein
Effizienz in lm/W
max.120 lm/W
Farbtemperatur
4000 K, 6500 K
Product profile

Product description

The FATTORIA LED moisture-resistant luminaire is designed for demanding agricultural and technical environments. It is particularly suitable for farms, stables, agricultural side rooms and other areas where an ammonia-resistant and robust lighting solution is required. The luminaire is part of the FATTORIA luminaire family and complements other versions for a consistent lighting concept.

The opal cover ensures an even, directly symmetrical light distribution. The luminaire is available in different lengths and thus enables flexible adaptation to different mounting and room conditions.

The closed luminaire body made of extruded PMMA prevents insect penetration and supports reliable operation in harsh environments. Freely positionable mounting clips facilitate installation and often allow the use of existing mounting points during renovations.

FATTORIA L is wired through and equipped with integrated LED driver. DALI versions, a separate kit for pendant mounting and special versions are available on request.

Product characteristics

  • Ammonia-resistant LED moisture-resistant luminaire
  • Part of the FATTORIA luminaire family
  • Suitable for ceiling or wall mounting
  • Available in different lengths
  • Ideal for agricultural environments
  • Opal cover for uniform light distribution
  • Direct symmetrical light distribution
  • Different light colours available
  • Through-wiring for series assembly
  • Luminaire body of extruded PMMA
  • Closed design for protection against invading insects
  • Freely positionable mounting clips for easy installation and renovation
  • With integrated LED driver
  • DALI version on request
  • Powerful thermal management
  • Pendant mounting with separate accessory kit possible
  • Protection class II
  • Ingress protection rating IP66
  • Impact resistance IK04
  • Special versions on request

Technical data

Abmessung
1323 x 62 x 56 mm
Leistungsaufnahme
max.35 W
Energieverbrauch
max.35 kWh/1000h
Flicker
Treiberabhängig
Schutzart
IP66
Schlagfestigkeitsklasse
IK04
Leuchtenlichtstrom
max.4200 lm
Effizienz in lm/W
max.120 lm/W
Abstrahlwinkel
160°
Farbwiedergabe
>80
Farbkonsistenz
6 SDCM
Produktmaterial
PMMAPolyamid
Produktfarbe
Grau
Garantie
5 Jahre
Sonderaussführungen
Auf Anfrage
Abdeckung
Opal
Farbtemperatur
4000 K6500 K
Extras
Ohne ExtrasPendelaufhängung
Leistungeinstellbarkeit
Nein
YOUR CONFIGURATION

Variants

Select one value per attribute. Combine several selections to narrow down the variant list.

Select attributes
4 variantsFilter available variants by configuration

Scroll horizontally to compare all attributes.

SKULeistungsaufnahme Produktfarbe Abdeckung FarbtemperaturExtras
FRL-F13Q-035-G-O-40-OXmax.35 WGrauOpal4000 KOhne Extras
FRL-F13Q-035-G-O-40-PDmax.35 WGrauOpal4000 KPendelaufhängung
FRL-F13Q-035-G-O-65-OXmax.35 WGrauOpal6500 KOhne Extras
FRL-F13Q-035-G-O-65-PDmax.35 WGrauOpal6500 KPendelaufhängung
