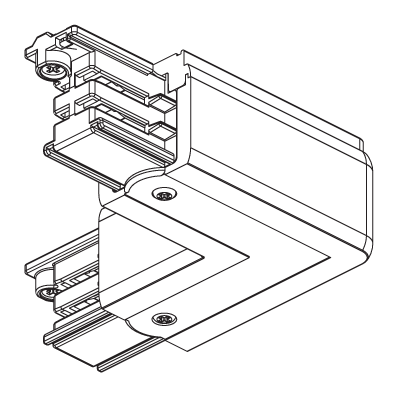

XTS 34 – manufacturer drawing
Three-circuit tracks

PRO XTS L-FEED

L-connector with a power-feed option for right-angle track runs. For PRO, with two polarity versions.

Product essentials

Item code
PRO-XTS
Applications
Custom
Request this product Show all 1 downloads
Product essentials

Key facts

Polungsausführung / Polarity version
XTS 34, XTS 35
Produktfarbe
Grau, Schwarz, Weiß
Bauteil / Component
L-Einspeiser / L-feed
Schienensystem / Track system
PRO
Einspeisemöglichkeit / Power feed
Ja / Yes
Product profile

Product description

L-FEED for PRO, with selectable polarity-ridge orientation. Select the required version and finish independently. Available in grey, black and white.

Connector with power-feed option.

Select the polarity-ridge orientation using the manufacturer drawings. The article code identifies the version; no left/right designation is inferred from the viewing direction.

Manufacturer article variants

  • XTS 34-1 — Grey; packaging: 5/25
  • XTS 34-2 — Black; packaging: 5/25
  • XTS 34-3 — White; packaging: 5/25
  • XTS 35-1 — Grey; packaging: 5/25
  • XTS 35-2 — Black; packaging: 5/25
  • XTS 35-3 — White; packaging: 5/25

Technical data

Polungsausführung / Polarity version
XTS 34XTS 35
Produktfarbe
GrauSchwarzWeiß
Bauteil / Component
L-Einspeiser / L-feed
Schienensystem / Track system
PRO
Einspeisemöglichkeit / Power feed
Ja / Yes
YOUR CONFIGURATION

Variants

Select one value per attribute. Combine several selections to narrow down the variant list.

Select attributes
6 variantsFilter available variants by configuration

Scroll horizontally to compare all attributes.

SKUPolungsausführung / Polarity versionProduktfarbe
3PH-PRO-XTS-34-1XTS 34Grau
3PH-PRO-XTS-34-2XTS 34Schwarz
3PH-PRO-XTS-34-3XTS 34Weiß
3PH-PRO-XTS-35-1XTS 35Grau
3PH-PRO-XTS-35-2XTS 35Schwarz
3PH-PRO-XTS-35-3XTS 35Weiß
