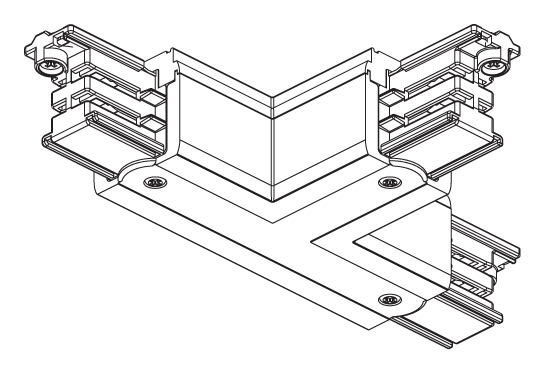

XTS 36 – manufacturer drawing
Three-circuit tracks

PRO XTS T-FEED

T-connector with a power-feed option for three-way track junctions. For PRO, with four polarity versions.

Product essentials

Item code
PRO-XTS
Applications
Custom
Request this product Show all 1 downloads
Product essentials

Key facts

Polungsausführung / Polarity version
XTS 36, XTS 37, XTS 39, XTS 40
Produktfarbe
Grau, Schwarz, Weiß
Bauteil / Component
T-Einspeiser / T-feed
Schienensystem / Track system
PRO
Einspeisemöglichkeit / Power feed
Ja / Yes
Product profile

Product description

T-FEED for PRO, with selectable polarity-ridge orientation. Select the required version and finish independently. Available in grey, black and white.

Connector with power-feed option.

Select the polarity-ridge orientation using the manufacturer drawings. The article code identifies the version; no left/right designation is inferred from the viewing direction.

Manufacturer article variants

  • XTS 36-1 — Grey; packaging: 5/25
  • XTS 36-2 — Black; packaging: 5/25
  • XTS 36-3 — White; packaging: 5/25
  • XTS 37-1 — Grey; packaging: 5/25
  • XTS 37-2 — Black; packaging: 5/25
  • XTS 37-3 — White; packaging: 5/25
  • XTS 39-1 — Grey; packaging: 5/25
  • XTS 39-2 — Black; packaging: 5/25
  • XTS 39-3 — White; packaging: 5/25
  • XTS 40-1 — Grey; packaging: 5/25
  • XTS 40-2 — Black; packaging: 5/25
  • XTS 40-3 — White; packaging: 5/25

Technical data

Polungsausführung / Polarity version
XTS 36XTS 37XTS 39XTS 40
Produktfarbe
GrauSchwarzWeiß
Bauteil / Component
T-Einspeiser / T-feed
Schienensystem / Track system
PRO
Einspeisemöglichkeit / Power feed
Ja / Yes
YOUR CONFIGURATION

Variants

Select one value per attribute. Combine several selections to narrow down the variant list.

Select attributes
12 variantsFilter available variants by configuration

Scroll horizontally to compare all attributes.

SKUPolungsausführung / Polarity versionProduktfarbe
3PH-PRO-XTS-36-1XTS 36Grau
3PH-PRO-XTS-36-2XTS 36Schwarz
3PH-PRO-XTS-36-3XTS 36Weiß
3PH-PRO-XTS-37-1XTS 37Grau
3PH-PRO-XTS-37-2XTS 37Schwarz
3PH-PRO-XTS-37-3XTS 37Weiß
3PH-PRO-XTS-39-1XTS 39Grau
3PH-PRO-XTS-39-2XTS 39Schwarz
3PH-PRO-XTS-39-3XTS 39Weiß
3PH-PRO-XTS-40-1XTS 40Grau
3PH-PRO-XTS-40-2XTS 40Schwarz
3PH-PRO-XTS-40-3XTS 40Weiß
