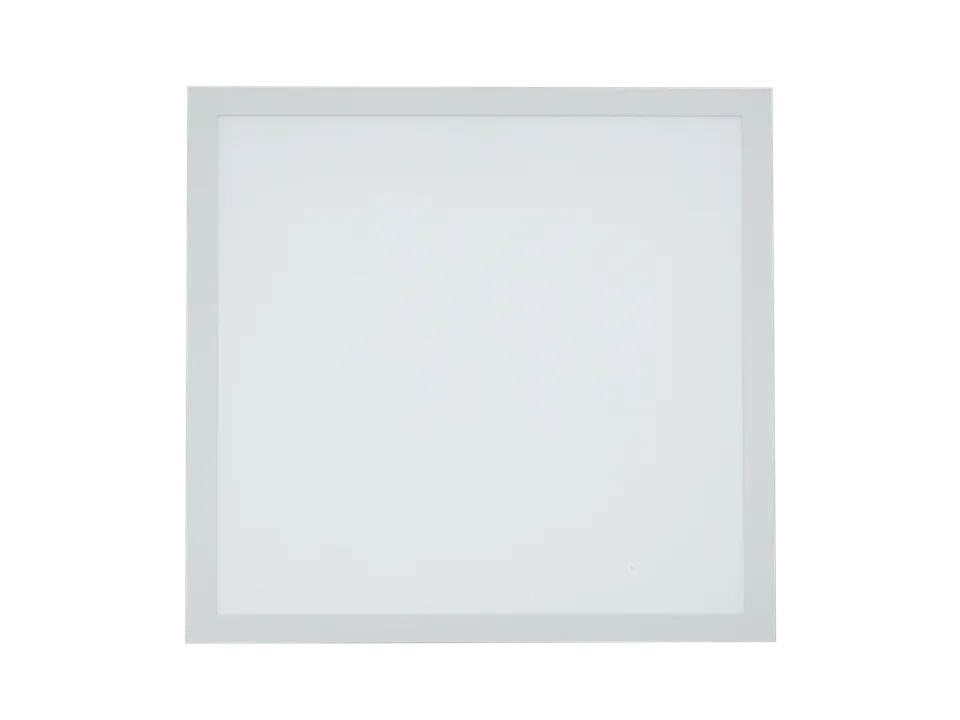

The PISA BACKLIT HE LED recessed luminaire is the efficiency-oriented version of the PISA BACKLIT luminaire family. It is suitable for offices, educational areas, administration buildings, meeting rooms, corridors and other interiors, in which a uniform and glare-reduced general lighting is required. The backlit technology in combination with a microprismatic cover ensures a homogeneous light effect and supports pleasant visual conditions at the workplace. The symmetrical light distribution allows a wide and uniform illumination of the space surface. Different light colours and adjustable power variants allow a flexible adaptation to the application. The Fast Connection Box simplifies assembly. Optionally, the luminaire is dimmable via DALI-2. Special versions are available on request.
Product characteristics
- Efficiency-oriented LED recessed luminaire of the PISA BACKLIT luminaire family
- Additional version available as PISA BACKLIT ME
- Flat backlit panel solution for system ceilings
- Microprismatic cover for glare-reduced light effect
- Symmetrical light distribution for uniform general lighting
- Suitable for screen workstations design
- Different light colours available
- Power adjustment via DIP switch depending on the design
- Easy installation thanks to Fast Connection Box
- Luminaire body made of aluminium and plastic
- Available in white
- Optionally dimmable via DALI-2
- Protection class II
- Ingress protection rating IP40 room-side
- Impact resistance IK03
- Photobiological safety group 0
- Special versions on request
