TRILUMIS
Track spotlights

YVO TRACK R

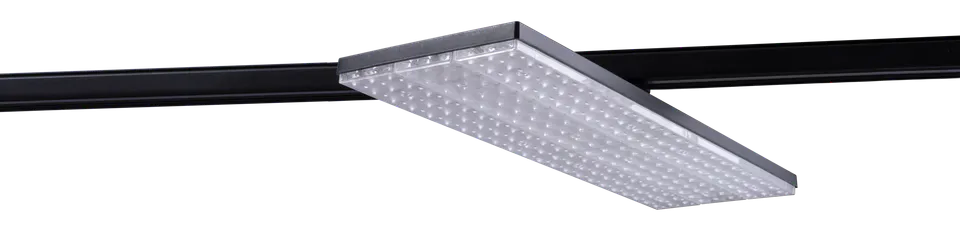

The YVO TRACK R LED Tracklight is a flat, linear lighting solution for 3-phase lighting track systems and is suitable for sales areas, galleries, exhibition areas, corridors and office environments. As part of the YVO TRACK luminaire family, the luminaire combines flexible mounting with controlled light distribution. In addition to the use as a tracklight, YVO TRACK R can also be used as a recessed or pendant luminaire with the appropriate accessories. Different light colours, beam characteristics and optical combinations allow for a needs-based adaptation to different applications. Optionally, the luminaire is available with DALI dimming.

Product essentials

Item code
YVTR
Applications
Custom
Product essentials

Key facts

Leuchtenlichtstrom
max.12000 lm
Leistungsaufnahme
max.70 W
Leistungeinstellbarkeit
Ja
Effizienz in lm/W
max.175 lm/W
Farbtemperatur
3000 K, 3500 K, 4000 K, 5000 K, 6000 K, Meat Red, Marbled Meat, Fish
Product profile

Product description

The YVO TRACK R LED Tracklight is a flat, linear lighting solution for modern sales areas, galleries, exhibition areas, corridors, offices and other interiors. As a track-panel version of the YVO TRACK luminaire family, the luminaire is particularly suitable for applications where flexible lighting track mounting with even and controlled light distribution is required.

With the universal lighting track adapter, YVO TRACK R can be comfortably integrated into common 3-phase lighting track systems. In addition to the use as a tracklight, the luminaire can also be used as a recessed or pendant luminaire with appropriate accessories. This allows a uniform lighting concept to be implemented across different ceiling and installation situations.

Different light colours, beam characteristics and optical combinations enable flexible adaptation to different lighting tasks. The luminaire is suitable for general lighting as well as for targeted illumination of corridor zones, product presentations or exhibition areas. Special lighting solutions are also available for retail applications depending on the design.

The slim housing is available in white or black and blends discreetly into different room concepts. A flicker-free design, high-quality LED and driver components as well as the optional DALI dimming support reliable and demand-oriented operation. Special versions are available on request.

Product characteristics

  • YVO TRACK R LED tracklight in flat, linear design
  • Suitable for 3-phase lighting track systems
  • With corresponding accessories also usable as a recessed or pendant luminaire
  • Part of the YVO TRACK luminaire family
  • Universal rail adapter for flexible project applications
  • Flexible alignment through rotatable design
  • Power switching possible depending on the design
  • Different light colours available
  • Different beam angles and optical combinations available
  • Special lighting solutions for retail and product presentations possible
  • Uniform, controlled light distribution
  • Reducing glare of light
  • Low-flicker design
  • High-quality LED and driver components
  • Housing available in white or black
  • Ingress protection rating IP20
  • Optionally dimmable via DALI
  • Special versions on request

Technical data

Abmessung
578 x 189 x 76 mm
Leistungsaufnahme
max.70 W
Energieverbrauch
max.70 kWh/1000h
Flicker
Treiberabhängig
Schutzart
IP20
Schlagfestigkeitsklasse
IK03
Leuchtenlichtstrom
max.12000 lm
Effizienz in lm/W
max.175 lm/W
Direkt-/Indirekt-Verhältnis
D: 100% / ID: 0%
Farbwiedergabe
>80>90
Farbkonsistenz
3 SDCM
Produktmaterial
AluminiumPC
Produktfarbe
WeißSchwarz
Garantie
5 Jahre
Sonderaussführungen
Auf Anfrage
Treiber
On/OffDALI
Abstrahlwinkel
60°90°4x90° & 2x60°4x25° & 2x60°4x25° & 2x90°
CRI
8090
Farbtemperatur
3000 K3500 K4000 K5000 K6000 KMeat RedMarbled MeatFish
Leistungeinstellbarkeit
Ja
YOUR CONFIGURATION

Variants

Select one value per attribute. Combine several selections to narrow down the variant list.

Select attributes
320 variantsFilter available variants by configuration

Scroll horizontally to compare all attributes.

SKULeistungsaufnahme Produktfarbe TreiberAbstrahlwinkelCRIFarbtemperatur
SS-YVTR-070-W-O-060-8-30max.70 WWeißOn/Off60°803000 K
SS-YVTR-070-W-O-060-8-35max.70 WWeißOn/Off60°803500 K
SS-YVTR-070-W-O-060-8-40max.70 WWeißOn/Off60°804000 K
SS-YVTR-070-W-O-060-8-50max.70 WWeißOn/Off60°805000 K
SS-YVTR-070-W-O-060-8-60max.70 WWeißOn/Off60°806000 K
SS-YVTR-070-W-O-060-8-MRmax.70 WWeißOn/Off60°80Meat Red
SS-YVTR-070-W-O-060-8-MMmax.70 WWeißOn/Off60°80Marbled Meat
SS-YVTR-070-W-O-060-8-FImax.70 WWeißOn/Off60°80Fish
SS-YVTR-070-W-O-060-9-30max.70 WWeißOn/Off60°903000 K
SS-YVTR-070-W-O-060-9-35max.70 WWeißOn/Off60°903500 K
SS-YVTR-070-W-O-060-9-40max.70 WWeißOn/Off60°904000 K
SS-YVTR-070-W-O-060-9-50max.70 WWeißOn/Off60°905000 K
