TRILUMIS
Table luminaires

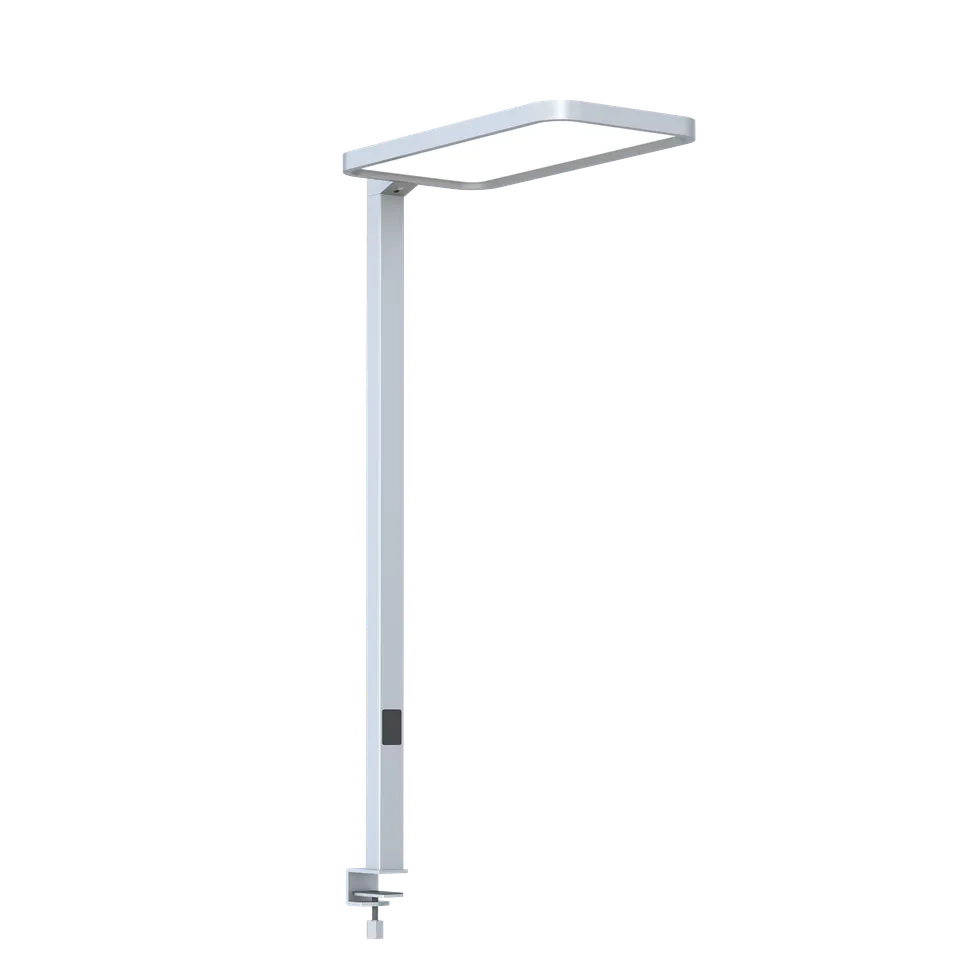

ZENO TL-R

The ZENO TL-R LED table luminaire is a table-mounted solution for modern office workstations. It combines direct and indirect lighting and can be conveniently controlled via an integrated touch panel. The microprismatic lighting technology supports glare-reduced visual conditions. As part of the ZENO luminaire family, ZENO TL-R complements the matching surface-mounted, pendant, standing and wall luminaire variants.

Product essentials

Item code
ZTLR
Applications
Custom
Product essentials

Key facts

Leuchtenlichtstrom
max.11.120 lm
Leistungsaufnahme
max.80 W
Effizienz in lm/W
max.148 lm/W
Farbtemperatur
3000 K, 4000 K, 6000 K, 3000 K - 5700 K
Farbwiedergabe
>80
Product profile

Product description

The ZENO TL-R LED table luminaire is a table mounted lighting solution for modern office workstations. It is suitable for individual workplaces, open office spaces and flexible workplace concepts, where efficient direct and indirect lighting is needed directly at the workplace.

As a table luminaire variant of the ZENO luminaire family, ZENO TL-R combines direct workplace lighting with indirect room illumination. The microprismatic lighting technology supports a glare-reduced light effect and pleasant visual conditions in concentrated activities.

The table-mounted design allows space-saving installation at the workplace. Direct and indirect light can be conveniently controlled and dimmed via an integrated touch panel. Depending on the design, motion and daylight sensors as well as smart control solutions such as CASAMBI or HCL are possible.

The luminaire body consists of aluminium profiles, steel components and PMMA. ZENO TL-R is available in several housing colours and complements the other mounting methods of the ZENO luminaire family for a consistent lighting concept.

Product characteristics

  • ZENO TL-R LED table luminaire for modern office workstations
  • Part of the ZENO luminaire family
  • Table mounted design for space-saving workplace lighting
  • Direct and indirect light distribution
  • Direct and indirect part controllable and dimmable via touch panel
  • Microprismatic lighting technology for glare-reduced light effects
  • Suitable for single workstations and open office space
  • Different light colours available
  • Optional with motion and daylight sensors
  • CASAMBI and HCL on request
  • Luminaire body made of aluminium profiles, steel and PMMA
  • Available in silver, white or black
  • Ingress protection rating IP20
  • Special versions on request

Technical data

Abmessung
692 x 310 x 1200 mm
Leistungsaufnahme
max.80 W
Energieverbrauch
max.80 kWh/1000h
Flicker
± 3%
Schutzart
IP40
Schlagfestigkeitsklasse
IK06
Leuchtenlichtstrom
max.11.120 lm
Effizienz in lm/W
max.148 lm/W
Abstrahlwinkel
D: 90° / ID: 110°
Direkt-/Indirekt-Verhältnis
D: 50% / ID: 50%
Farbwiedergabe
>80
Farbkonsistenz
3 SDCM
Produktmaterial
AluminiumPC
Produktfarbe
WeißSchwarzSilber
Garantie
5 Jahre
Sonderaussführungen
Auf Anfrage
Treiber
TouchDim
Farbtemperatur
3000 K4000 K6000 K3000 K - 5700 K
Extras
Ohne ExtrasBewegungs- & Tageslichtsensor
YOUR CONFIGURATION

Variants

Select one value per attribute. Combine several selections to narrow down the variant list.

Select attributes
24 variantsFilter available variants by configuration

Scroll horizontally to compare all attributes.

SKULeistungsaufnahme Produktfarbe TreiberFarbtemperaturExtras
TSL-ZTLR-080-W-TD-30-OXmax.80 WWeißTouchDim3000 KOhne Extras
TSL-ZTLR-080-W-TD-30-BTmax.80 WWeißTouchDim3000 KBewegungs- & Tageslichtsensor
TSL-ZTLR-080-W-TD-40-OXmax.80 WWeißTouchDim4000 KOhne Extras
TSL-ZTLR-080-W-TD-40-BTmax.80 WWeißTouchDim4000 KBewegungs- & Tageslichtsensor
TSL-ZTLR-080-W-TD-60-OXmax.80 WWeißTouchDim6000 KOhne Extras
TSL-ZTLR-080-W-TD-60-BTmax.80 WWeißTouchDim6000 KBewegungs- & Tageslichtsensor
TSL-ZTLR-080-W-TD-30B57-OXmax.80 WWeißTouchDim3000 K - 5700 KOhne Extras
TSL-ZTLR-080-W-TD-30B57-BTmax.80 WWeißTouchDim3000 K - 5700 KBewegungs- & Tageslichtsensor
TSL-ZTLR-080-B-TD-30-OXmax.80 WSchwarzTouchDim3000 KOhne Extras
TSL-ZTLR-080-B-TD-30-BTmax.80 WSchwarzTouchDim3000 KBewegungs- & Tageslichtsensor
TSL-ZTLR-080-B-TD-40-OXmax.80 WSchwarzTouchDim4000 KOhne Extras
TSL-ZTLR-080-B-TD-40-BTmax.80 WSchwarzTouchDim4000 KBewegungs- & Tageslichtsensor
